Historic tower

Project Key Facts

• Location: Germany

• Building type: Historic tower

• Project size: 250 m²

• Tools/Software: AutoDesk AutoCAD

• Team size:  2 Architects

• Delivery: 6 working days

Inputs

• Unstructured and georeferenced point cloud in .e57 format

Tools/Software from our partner

• AutoDesk AutoCAD

Deliverables

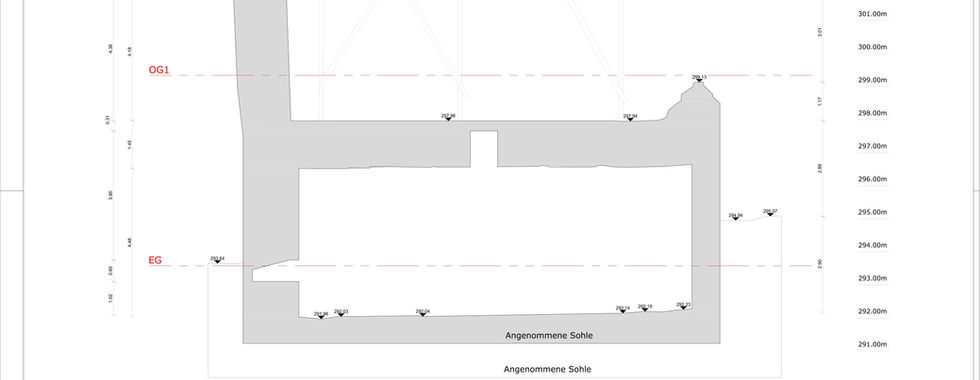

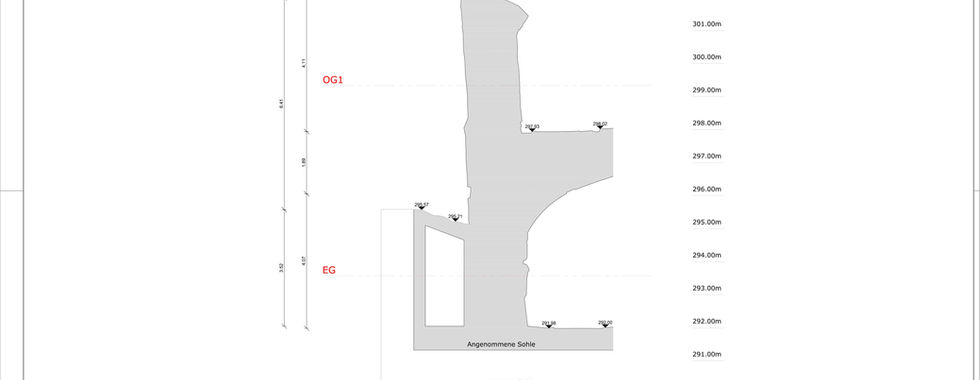

• 2D drawings in dwg and pdf format LOD 300




Project description of the historic tower

A precise 2D plan of a historic tower was created for a listed building to serve as the basis for future renovation measures. The historic tower exhibited typical age-related deformations, which made the modeling technically challenging. The aim was to capture these irregularities precisely and represent them in a reliable model.

It was particularly challenging to make an initial estimate without a panoramic viewer and to produce several georeferenced variants in order to meet customer-specific requirements. Despite these hurdles, the team managed to deliver a clean and accurate result based on high-resolution laser scan data. The model not only documents the current geometry, but also enables well-founded planning of further reconstruction and restoration measures.
